"Basics of Basics" Lengthening or shortening a bolt or rod.

“Basics of Basics” Lengthening or shortening a bolt or rod.
By Brian Martin

So what do you do if you have a bolt or rod that needs to be longer, how to weld it and keep it straight is the problem. This trick I learned years ago has worked well for me.

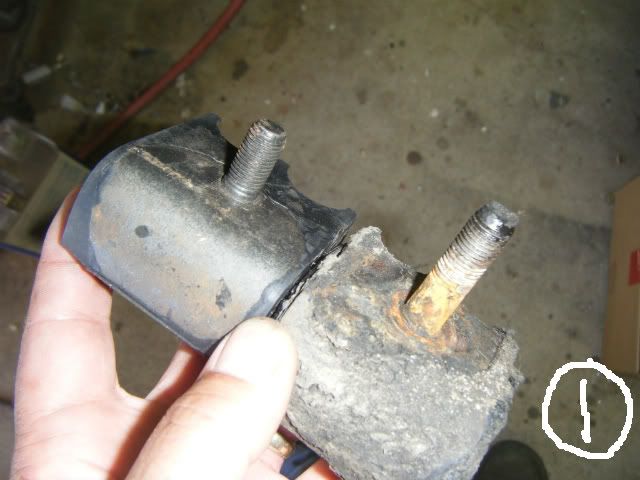

I was getting ready to put my motor in and found that the rear tranny mounts, though they looked the same as the front had a longer stud. I had couple pair of new front ones but nothing for the rear. So I needed to lengthen the studs a pair of then, changing them from front to rear mounts. These mounts are very expensive for my Rambler and a few days to get, so this was my choice for a fix. In photo #1 you can see the new mount and the old one with the longer stud.



Photo 2 you can see how the stud was cut from the old mount and beveled. The stud on the new mount was shortened a little so the weld would be hidden inside the bell housing and not interfere the nut being screwed on. It too was beveled.



Numbers 3 and 4 show how to keep it straight while welding, you clamp it into a piece of straight channel or angle iron. You of course the metal has to be perfectly straight, and no distortion or anything so the bolt or rod can lay down perfectly flat.





Photo number 5 shows after a weld has been made. In my case I needed to set the welder very hot so a quick weld could be made before the surrounding metal heated up and melted my rubber motor mount. And in photo 6 you can see me quickly after welding cooling the stud where it goes into the rubber with my air blower. You don’t want to cool the weld it’s self to fast or it will become brittle. I am no metallurgist but I have to assume even what I did here was making it harder than before so this could be an issue depending on what you are welding. In my case I kept the weld area as unaffected as I could by my cooling and will be throwing the dice that it won’t be too brittle.




And photo 7, the final product before smoothing off the weld a little so it would fit thru the hole in the bell housing.



These motor mounts have been in my car driving it every day for a number of months so all looks good. I got the job done with a little hotrodder ingenuity. It was funny how I thought I would just be ordering a new pair of mounts as today that is more how we think, just buy new. Then it hit me what would I have done back when I was in high school, my God I would have cut and welded that sucker and been at the drags that night, so I decided to cut and weld them.

    Advertisement
Reply With Quote Quick reply to this message
Sponsored Links
Advertisement

  #2 (permalink)
Old 12-26-2011, 03:33 PM
matts37chev's Avatar
I don't understand?


Last journal entry: this is only a test
Last photo:
Join Date: Jan 2009
Location: Shelton,Wa.
Posts: 2,450
Wiki Edits: 0

Thanks: 3
Thanked 10 Times in 9 Posts
very good write up
Quote:
Photo 2 you can see how the stud was cut from the old mount and beveled. The stud on the new mount was shortened a little so the weld would be hidden inside the bell housing and not interfere the nut being screwed on. It too was beveled.
I feel like this is the meat of the post^^^^(getting it staight is also important)

you cut and weld below the part that you will be threading a nut onto
bevel the cut, so you get full penetration on the weld

very nice
Reply With Quote Quick reply to this message
  #3 (permalink)
Old 12-27-2011, 07:26 AM
S10Fan's Avatar
Garage Filler


Last journal entry: I need more time!
Last photo:
Join Date: Oct 2003
Location: Newport News Virginia
Age: 57
Posts: 302
Wiki Edits: 0

Thanks: 1
Thanked 0 Times in 0 Posts
Excellent tip!
Reply With Quote Quick reply to this message
  #4 (permalink)
Old 12-27-2011, 08:20 AM
MARTINSR's Avatar
Brian Martin,Freelance adviser

Last photo:
Join Date: Jun 2004
Location: San francisco bay area
Age: 55
Posts: 13,290
Wiki Edits: 0

Thanks: 1,430
Thanked 1,222 Times in 1,077 Posts
Quote:
Originally Posted by matts37chev
very good write up
I feel like this is the meat of the post^^^^(getting it staight is also important)

you cut and weld below the part that you will be threading a nut onto
bevel the cut, so you get full penetration on the weld

very nice

You certainly don't want to have to thread over that MIG weld!

Brian
Reply With Quote Quick reply to this message
  #5 (permalink)
Old 12-29-2011, 07:19 AM
graydog's Avatar
Registered User

Last photo:
Join Date: Apr 2007
Location: Western Oklahoma
Posts: 34
Wiki Edits: 0

Thanks: 0
Thanked 0 Times in 0 Posts
Very good write up and photos.
Reply With Quote Quick reply to this message
  #6 (permalink)
Old 12-29-2011, 07:53 AM
MARTINSR's Avatar
Brian Martin,Freelance adviser

Last photo:
Join Date: Jun 2004
Location: San francisco bay area
Age: 55
Posts: 13,290
Wiki Edits: 0

Thanks: 1,430
Thanked 1,222 Times in 1,077 Posts
Thank you.

Brian
Reply With Quote Quick reply to this message
  #7 (permalink)
Old 12-29-2011, 08:45 AM
matts37chev's Avatar
I don't understand?


Last journal entry: this is only a test
Last photo:
Join Date: Jan 2009
Location: Shelton,Wa.
Posts: 2,450
Wiki Edits: 0

Thanks: 3
Thanked 10 Times in 9 Posts
Quote:
Originally Posted by graydog
Very good write up and photos.
if you guys didn't take the time to photograph, narrate, and post
this site wouldn't be nearly as good/informative
it is greatly appreciated
Reply With Quote Quick reply to this message
  #8 (permalink)
Old 12-29-2011, 10:21 AM
Registered User

Last photo:
Join Date: Dec 2009
Location: Metro Phoenix, Az
Posts: 6
Wiki Edits: 0

Thanks: 0
Thanked 0 Times in 0 Posts
Lengthening or Shortening a Bolt or Rod: MARTINSR

Thanks for an excellent post/tip. Liked the clear photography and good narrative. Keep them coming!
Reply With Quote Quick reply to this message
  #9 (permalink)
Old 12-29-2011, 08:57 PM
American Thunder's Avatar
The eccentric mind

Join Date: May 2008
Location: Upstate New York
Age: 45
Posts: 26
Wiki Edits: 0

Thanks: 0
Thanked 0 Times in 0 Posts
Hey, nice work. I've done similar stuff myself during builds, nothing wrong with some creative thinking on a project!
Reply With Quote Quick reply to this message
  #10 (permalink)
Old 01-04-2012, 07:40 AM
Registered User

Join Date: Jun 2010
Location: virginia
Posts: 7
Wiki Edits: 0

Thanks: 0
Thanked 0 Times in 0 Posts
making a bolt longer

wery nice tip,,,,well explained,,excellent photos,,,,,I have tried this before,,,,,but just didn t look nearly as good,,,,,,thanks
Reply With Quote Quick reply to this message
  #11 (permalink)
Old 01-04-2012, 07:52 AM
MARTINSR's Avatar
Brian Martin,Freelance adviser

Last photo:
Join Date: Jun 2004
Location: San francisco bay area
Age: 55
Posts: 13,290
Wiki Edits: 0

Thanks: 1,430
Thanked 1,222 Times in 1,077 Posts
Thanks guys for the kind words.
