  #1 (permalink)
Old 12-14-2005, 03:52 PM
ocean_toad's Avatar
Fabricating speed and control

Last photo:
Join Date: Nov 2005
Location: TN
Age: 51
Posts: 31
Wiki Edits: 0

Thanks: 0
Thanked 0 Times in 0 Posts
Gittin-R-Done

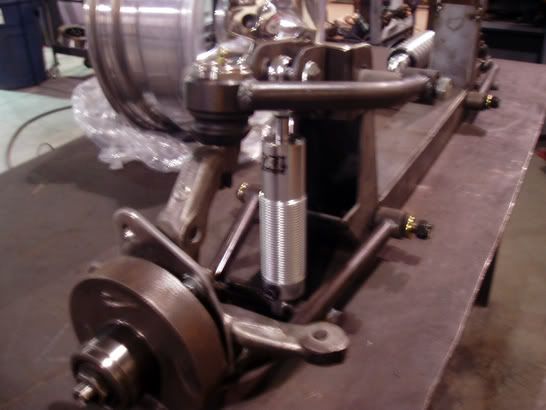

Wanted to throw some pics of my suspension project up here to get some feedback. Of course I'm not finished. I'm cutting the bushing ends off the upper control arms and replacing them with 3/4' heim joints. I think I need to move the shock mount on the lower control arm out to get more of an angle. My rack should be here tomorrow so I can get it mocked up. Please let me know if you guy's see anything that needs to be improved. Oh and had to throw the Smoothie up in the back ground.














    Advertisement

Last edited by ocean_toad; 12-14-2005 at 04:11 PM.
Reply With Quote Quick reply to this message
Sponsored Links
Advertisement

  #2 (permalink)
Old 12-14-2005, 04:36 PM
BillyShope's Avatar
Philippines Cowboy


Last journal entry: THE TRACTION DYNO
Last photo:
Join Date: Jan 2004
Location: Orlando, FL
Age: 78
Posts: 875
Wiki Edits: 0

Thanks: 0
Thanked 13 Times in 7 Posts
There's no real reason to angle the shock, except that, where it is now prevents you from adequately bridging the upper arm. I'd move the upper shock mount towards the center of the car far enough to allow a tube to tie together the inner end of the upper arm. The same should be done to the lower arm, of course. I'd also add some support to that long spacer on the pivot shaft for the lower arm. You need some means for camber adjustment, which would justify at least 2 Heims. Don't really need 4. Doesn't look like you've designed in any anti-dive, but that's no biggie.
Reply With Quote Quick reply to this message
  #3 (permalink)
Old 12-14-2005, 04:50 PM
ocean_toad's Avatar
Fabricating speed and control

Last photo:
Join Date: Nov 2005
Location: TN
Age: 51
Posts: 31
Wiki Edits: 0

Thanks: 0
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by BillyShope
There's no real reason to angle the shock, except that, where it is now prevents you from adequately bridging the upper arm. I'd move the upper shock mount towards the center of the car far enough to allow a tube to tie together the inner end of the upper arm. The same should be done to the lower arm, of course. I'd also add some support to that long spacer on the pivot shaft for the lower arm. You need some means for camber adjustment, which would justify at least 2 Heims. Don't really need 4. Doesn't look like you've designed in any anti-dive, but that's no biggie.
Thanks for your input Billy

The tubing that is used to mount the upper control arm is set at a 3 degree angle. What I've read that should work don't you think? I don't believe that I can move the upper shock mount in. It's so close to my frame rail at it is. I'll check it out when I get to the shop tomorrow.
Reply With Quote Quick reply to this message
  #4 (permalink)
Old 12-15-2005, 05:14 AM
BillyShope's Avatar
Philippines Cowboy


Last journal entry: THE TRACTION DYNO
Last photo:
Join Date: Jan 2004
Location: Orlando, FL
Age: 78
Posts: 875
Wiki Edits: 0

Thanks: 0
Thanked 13 Times in 7 Posts
The general geometry looks good. I'm just uncomfortable that there's nothing bridging the open ends of those "U's" that are the arms. And, that longs sleeve that is also unsupported makes me uneasy. It's just a few more ounces, but it makes a big difference in whether it would survive a heavy hit AND it could greatly extend the life of the bushings and/or Heims.

Perhaps the upper shock mount could be moved up sufficiently.
Reply With Quote Quick reply to this message
  #5 (permalink)
Old 12-15-2005, 07:21 AM
ocean_toad's Avatar
Fabricating speed and control

Last photo:
Join Date: Nov 2005
Location: TN
Age: 51
Posts: 31
Wiki Edits: 0

Thanks: 0
Thanked 0 Times in 0 Posts
I have gussets cut for all the tubing sleaves. I also will skin the upper shock mount and upper control arm mount for added support. I left them open to be able to weld the inner part. When my rack arrives, I can get it mocked up. Then I should be able to do all the final welding.

You do have a good eye Billy. Thanks for your input.

Do you think that the shock angle will be fine?
Reply With Quote Quick reply to this message
  #6 (permalink)
Old 12-16-2005, 03:27 AM
BillyShope's Avatar
Philippines Cowboy


Last journal entry: THE TRACTION DYNO
Last photo:
Join Date: Jan 2004
Location: Orlando, FL
Age: 78
Posts: 875
Wiki Edits: 0

Thanks: 0
Thanked 13 Times in 7 Posts
Quote:
Originally Posted by ocean_toad
I also will skin the upper shock mount and upper control arm mount for added support. I left them open to be able to weld the inner part.
I wasn't referring to these, but to the upper and lower control arms. Unless the upper and lower control arms are bridged at their open ends, cornering loads will tend to spread them, reducing the service life of the bushings and/or Heims. But, the upper shock mount is in the way.

The only reason shock angle has to be addressed is in the accommodation of the shock stroke length. (Consideration must also be given to shock effectiveness. Note later comment on wheel rate.) If the shock can be mounted vertical without running out of stroke, that's fine. If it's necessary to mount it at an angle, that's also fine. But, with a coilover, you also must consider the effect an angle has on the wheel rate. The spring rate doesn't change, of course, but the wheel rate can be affected as you angle the coilover.
Reply With Quote Quick reply to this message
  #7 (permalink)
Old 12-16-2005, 05:49 AM
STUPID is as STUPID does...

Last wiki edit: Crankshaft Coalition Wiki Last photo:
Join Date: Nov 2003
Location: Stupidville, USA
Posts: 1,718
Wiki Edits: 1

Thanks: 11
Thanked 82 Times in 76 Posts
Here is a link to some shock calculators that will help you out.
http://www.proshocks.com/calcs/index.htm
The angle and the distance to the ball joint will affect the end spring rate. The shorter the distance to the ball stud the less spring rate you need to hold the car up. It's just a matter of leverage. I try to keep the lower shock attachment as close to the LBJ as is practical to improve the leverage ratio.
Another point to check is the actual clearance from the coil spring on the shock to the frame. I see the notch in your crossmember but the framisn't represented so check that if you decide to move the upper mount inboard.
The suspension looks like a kit. Who's did you use?
Mark
Reply With Quote Quick reply to this message
  #8 (permalink)
Old 12-16-2005, 07:52 AM
ocean_toad's Avatar
Fabricating speed and control

Last photo:
Join Date: Nov 2005
Location: TN
Age: 51
Posts: 31
Wiki Edits: 0

Thanks: 0
Thanked 0 Times in 0 Posts
I have to move the shock mount up 1" to get the full travel of the coilover. That's my fault for putting the horse before the carriage.

The crossmember I drew in AutoCad 2000. We have a CNC plasma that cut all the sections.

Great link for the shocks Mark thanks

I received the rack yesterday so I'll be able to get more complete this weekend. I will post some more good stuff Monday for sure.

Thanks guy's

-toad
Reply With Quote Quick reply to this message
  #9 (permalink)
Old 12-16-2005, 08:12 AM
BillyShope's Avatar
Philippines Cowboy


Last journal entry: THE TRACTION DYNO
Last photo:
Join Date: Jan 2004
Location: Orlando, FL
Age: 78
Posts: 875
Wiki Edits: 0

Thanks: 0
Thanked 13 Times in 7 Posts
Just to give a "for instance" on what Astroracer said:

If it were possible to mount a 100 #/inch spring directly over the tire, the wheel rate would also be 100 #/inch. If you move the spring to a spot halfway between the pivot and the tire, the wheel rate would be only 25 #/inch. In other words, the effective wheel rate changes by the square of the linkage ratio. The actual distance from the spring to the pivot is measured on a line perpendicular to the spring axis.
Reply With Quote Quick reply to this message
