Pickup Bed Trailer

Im looking for info on how to build one. Not much out there...
The only stuff ive found basically says to cut the frame as far forward as possible etc, but that seems like a lot of bulk. As it happens im picking up a rust free box for my s10, so thought of turning the old box into a trailer, building my own frame...
Any pics would be appreciated
S>

    Advertisement
Reply With Quote Quick reply to this message
Sponsored Links
Advertisement

  #2 (permalink)
Old 12-18-2007, 06:41 AM
poncho62's Avatar
Out of the Loop Moderator

Last wiki edit: Streetbeasts links
Last journal entry: at car show
Last photo:
Join Date: Oct 2003
Location: Hanover, Ontario, Canada
Age: 62
Posts: 17,037
Wiki Edits: 5

Thanks: 24
Thanked 332 Times in 258 Posts

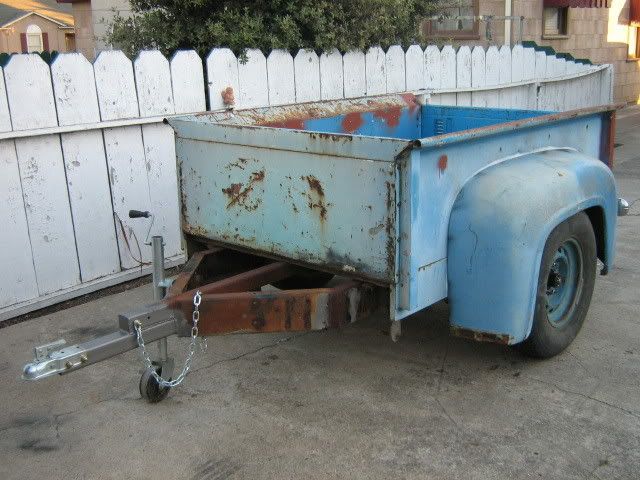

Heres a cool one....

I used my trailer for the first time, went and got my Christmas tree.

Ask Brian how he did his.
__________________
Ontario Rodders
Reply With Quote Quick reply to this message
  #3 (permalink)
Old 12-18-2007, 06:42 AM
classicautoresto's Avatar
Rust Buster


Last journal entry: birthday surprise
Last photo:
Join Date: Jul 2007
Location: lebanon, ky
Age: 47
Posts: 23
Wiki Edits: 0

Thanks: 0
Thanked 1 Time in 1 Post
3 tips,1. square up before you weld, 2. SQUARE up before you WELD, and 3. SQUARE UP BEFORE YOU WELD!!!!!!!!!
Reply With Quote Quick reply to this message
  #4 (permalink)
Old 12-18-2007, 07:20 AM
31 five window


Last journal entry: grill and rear end
Last photo:
Join Date: Oct 2007
Location: louisiana
Age: 57
Posts: 1,582
Wiki Edits: 0

Thanks: 1
Thanked 16 Times in 16 Posts
Where you cut the frame only matters if you are using the frame. I have built several using different year chevys and an old courier. If you are building your own frame then the length of the tongue depends on your set up. I like to take into account how far my hitch sticks out on my tow truck and make the hitch long enough so you can turn without the front off the bed hitting your tail lights.Use soap stone and lay it out on a clean flat concrete slab.
Reply With Quote Quick reply to this message
  #5 (permalink)
Old 12-18-2007, 09:03 AM
MARTINSR's Avatar
Brian Martin,Freelance adviser

Last photo:
Join Date: Jun 2004
Location: San francisco bay area
Age: 56
Posts: 13,437
Wiki Edits: 0

Thanks: 1,575
Thanked 1,327 Times in 1,151 Posts
Quote:
Originally Posted by sharp21
Im looking for info on how to build one. Not much out there...
The only stuff ive found basically says to cut the frame as far forward as possible etc, but that seems like a lot of bulk. As it happens im picking up a rust free box for my s10, so thought of turning the old box into a trailer, building my own frame...
Any pics would be appreciated
S>
Sure there is some "bulk" but I figure it is a trailer not a T bucket. If you want to trim it down, do so, you could pie cut the end of the rail to make it more pleasing. But all I did was to bring the rails together leaving the two inches for the tube to slide between them. I welded the first tube in there all the way back to a crossmember in front of the axle. I then put another one under it to bring the coupler out far enough away from the trailer as to not jack knife it when backing. It was pretty simple.

Brian

Reply With Quote Quick reply to this message
  #6 (permalink)
Old 12-18-2007, 10:21 AM
31 five window


Last journal entry: grill and rear end
Last photo:
Join Date: Oct 2007
Location: louisiana
Age: 57
Posts: 1,582
Wiki Edits: 0

Thanks: 1
Thanked 16 Times in 16 Posts
Thats neat MartinSr. When I made mine I used a bulldog hitch and brought the frame together at the right angle so I could weld hitch directly to frame rails.
Reply With Quote Quick reply to this message
  #7 (permalink)
Old 12-18-2007, 07:29 PM
Member

Last photo:
Join Date: Dec 2004
Location: canada
Posts: 44
Wiki Edits: 0

Thanks: 0
Thanked 0 Times in 0 Posts
Looks pretty good.
The only thing for me though is that Im not gonna have a frame to work with, so Ill have to build my own...
S.
Reply With Quote Quick reply to this message
  #8 (permalink)
Old 12-18-2007, 08:33 PM
willowbilly3's Avatar
Member


Last journal entry: Body mods
Last photo:
Join Date: Jun 2004
Location: Black Hills, South Dakota
Age: 61
Posts: 1,208
Wiki Edits: 0

Thanks: 0
Thanked 0 Times in 0 Posts
I'd say just lay the bed upside down and bolt the first 2 sections where the bolt holes go in the bed and start putting in some cross pieces, at least 4. Then take a long straight piece of square tubing and put it up the center, tack or clamp it for a centerline and build the hitch portion to the centerline. If you left the siderails long you could just bend them in at this point and weld on the coupler. Reinforce the tubing where the axle mounts, center that up and weld it in. flip it over, pull the box and finnish the welding. Those torsion axles are cool and real easy to mount. Also get the swing up jack.
And also make sure the tongue is plenty long, at least 4-5 feet. Any less and you will never be able to back it up.
Reply With Quote Quick reply to this message
  #9 (permalink)
Old 12-18-2007, 11:15 PM
Member

Last photo:
Join Date: Dec 2004
Location: canada
Posts: 44
Wiki Edits: 0

Thanks: 0
Thanked 0 Times in 0 Posts
Thats along the lines of what I was thinking.
I dunno about the torsion axle though, id like to use matching rims!
S.
Reply With Quote Quick reply to this message
  #10 (permalink)
Old 12-19-2007, 07:12 AM
31 five window


Last journal entry: grill and rear end
Last photo:
Join Date: Oct 2007
Location: louisiana
Age: 57
Posts: 1,582
Wiki Edits: 0

Thanks: 1
Thanked 16 Times in 16 Posts
I am pretty sure you can buy a torsion axle to match your lug pattern.
Reply With Quote Quick reply to this message
  #11 (permalink)
Old 12-21-2007, 07:51 AM
jray's Avatar
Registered User

Join Date: May 2006
Location: PineyWoods,Louisiana
Posts: 142
Wiki Edits: 0

Thanks: 0
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by willowbilly3
Those torsion axles are cool and real easy to mount. Also get the swing up jack.
Building frame-up, torsion axles are the way to go...and you'll never regret having the swing-up jack but you will regret not having it if you don't.
Reply With Quote Quick reply to this message
  #12 (permalink)
Old 12-21-2007, 07:17 PM
Member

Last photo:
Join Date: Dec 2004
Location: canada
Posts: 44
Wiki Edits: 0

Thanks: 0
Thanked 0 Times in 0 Posts
Thanks guys
When I get back in from work ill make a run to the trailer store & take a look at the axles
S.
Reply With Quote Quick reply to this message
  #13 (permalink)
Old 12-24-2007, 06:15 AM
Registered User

Last photo:
Join Date: Dec 2007
Location: Ohio
Posts: 4
Wiki Edits: 0

Thanks: 0
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by sharp21
Im looking for info on how to build one. Not much out there...
The only stuff ive found basically says to cut the frame as far forward as possible etc, but that seems like a lot of bulk. As it happens im picking up a rust free box for my s10, so thought of turning the old box into a trailer, building my own frame...
Any pics would be appreciated
S>
Hello, I built 2 in recent years and basically restored the back half of a pickup utilizing the original chassis and running gear. I feel it makes for a great trailer to pull behind your hot rod or classic car. Tounge was fabricated by cutting frame as far forward as possible and notching frame rails to fit a 50 degree coupler (each cut on frame 12.5 degrees). My 61 Chevy stepside shortbed weighs in at 920 lbs. My 68 Chevy longbed weighs in at 1150. Personally I feel if you keep the original chassis, it adds to the coolness of the trailer. Of course, if you are just going to haul firewood in it then that s a different story. Hope this info helps, Jim
Attached Thumbnails
Click image for larger version

Name:	02 pickup with 61 trailer.jpg
Views:	1398
Size:	84.2 KB
ID:	26344   Click image for larger version

Name:	tahoe and little green wagon.jpg
Views:	1157
Size:	132.9 KB
ID:	26345   Click image for larger version

Name:	red trailer.jpg
Views:	1443
Size:	200.8 KB
ID:	26346

Last edited by jim and robie; 12-24-2007 at 06:33 AM.
Reply With Quote Quick reply to this message
  #14 (permalink)
Old 12-24-2007, 08:04 AM
Kevin45's Avatar
Just one of the guys


Last journal entry: Garage Toys
Last photo:
Join Date: Jul 2002
Location: Urbana, Ohio
Age: 58
Posts: 3,060
Wiki Edits: 0

Thanks: 1
Thanked 17 Times in 17 Posts
I would think that by the time you buy and axle, get the tubing to build a frame, and spend the hours fabbing a frame up, you could pick up an S-Dime frame for a little of nothing and utilize it. Modify the front and be good to go. At least with the frame you have the axle setup, all bolt holes are already there, springs are already there, etc. But that's just my $.02. Happy Holidays all.

Kevin
Reply With Quote Quick reply to this message
  #15 (permalink)
Old 12-24-2007, 08:29 AM
MARTINSR's Avatar
Brian Martin,Freelance adviser

Last photo:
Join Date: Jun 2004
Location: San francisco bay area
Age: 56
Posts: 13,437
Wiki Edits: 0

Thanks: 1,575
Thanked 1,327 Times in 1,151 Posts
Jim, those are some BEAUTIFUL trailers!!! Very nice!!! I have to get off my dying *** and onto my dead feet and get out there and rebuild mine to look like that. VERY NICE!

Kevin, I am with you, tubing is expensive! But I have to say, I get a twitch in my eye when I think about using the stock rear axle under the trailer with the yoke spinning around as I go down the highway. I got a dropped axle complete with hubs with a matching bolt pattern to wheels I wanted to use for ....damn I can't remember.....I think it was about $200. You can get them a LOT cheaper if you aren't as picky as me. I HAD to have the 5x5.5 inch bolt pattern (early Ford) which meant a 3500lb axle. had to be used. If you go to the trailer places you can get a generic 1500lb axle and hubs for about a hundred bucks! This is COMPLETE bearings, seals and all.

These hubs are pretty light weight, but they're way less than a hundred bucks for axle and all! For a little heavier duty it will still be about a hundred.

Click here for the Axle....

Click here for the hubs, lug nuts, cotter pin and all!!

Personally, I want the weight that I pull to be IN the trailer, not the trailer it's self. So even if it was "just a trailer" and nothing special, I still think I would go witht the trailer axle.

Brian
Reply With Quote Quick reply to this message
